Description of product images and characteristics
  FL36/45 SINGLE-POINT RELEASE 2-POST LIFT – BASE PLATE

◆ Enlarged and intensified base

◆ Single-point lock release, convenient for user

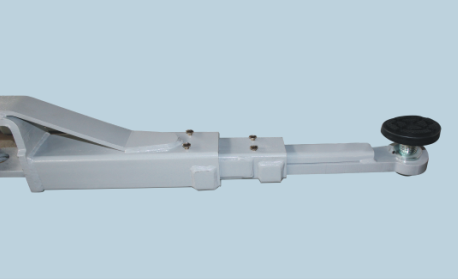

◆ 3-stage arm

◆ Aluminum-shell motor, better ventilation, longer service(cost option)

◆ Height extension + screw-up rubber pad adaptor

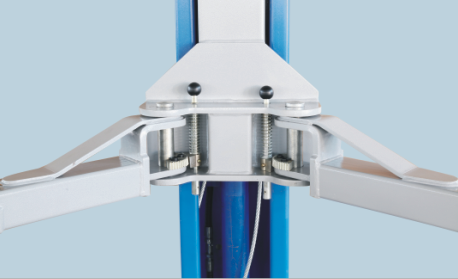

◆ Enhanced premium carriage

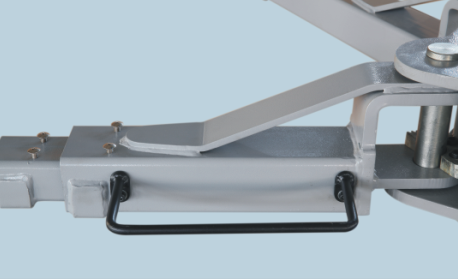

◆ Toe protector

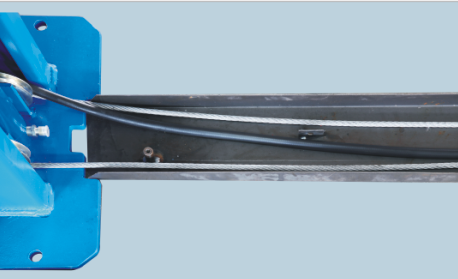

◆ Sealed tray covering steel wire and oil hose

◆ Height limit switch



·

Technical Specification

　Lifting capacity 　3600kg/4500kg
　Lifting height 　1850mm/1850mm
　Minimum height 　95mm/95mm
　Lifting time 　45s/50s
　Overall height 　3786mm/3786mm
　Overall width  　3418mm/3418mm
　Distance between column 　2820mm/2820mm
　Motor Power 　2.2kw/2.2kw
　Power supply 　220V/380V/415V
  Details

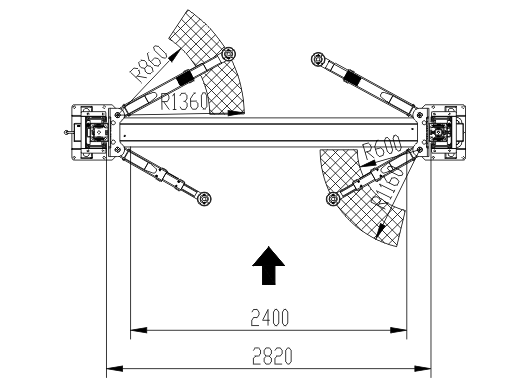

  Packing size and line drawings


  Optional Parts
