Description of product images and characteristics
  FB200 COLOR-DISPLAY FULL AUTOMATIC WHEEL BALANCER

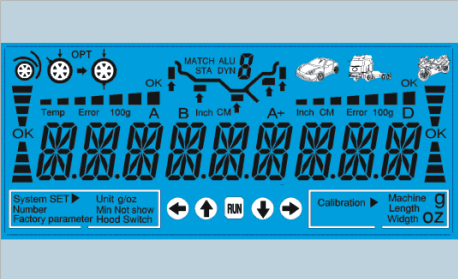

◆ 7” color-display screen, friendly and immediate interface

◆ Fine position angled by 64-track optical encoder

◆ Weight calibration from double sides, easy to operate

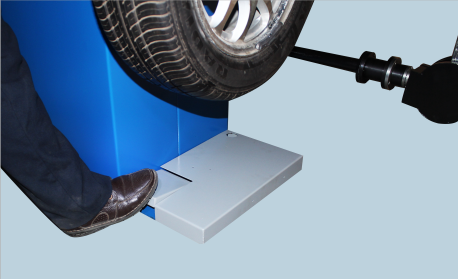

◆ Pedal brake, efficient to add weight

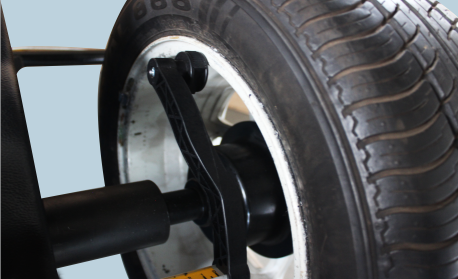

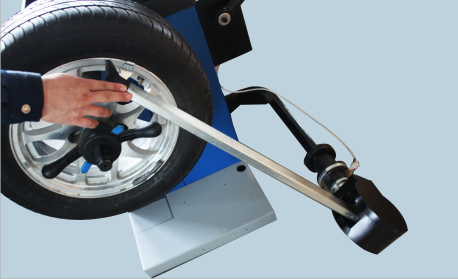

◆ Automatic gauge, quick and accurate reading of wheel width measurement

◆ Error-spot detecting program built in, easy to locate error from screen

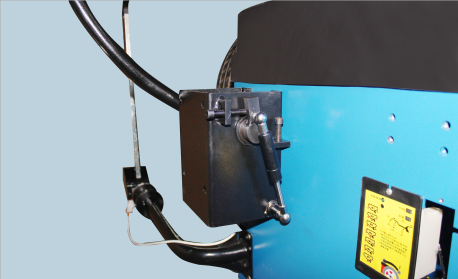

◆ Wheel guard supported by air spring, locking position at any angle

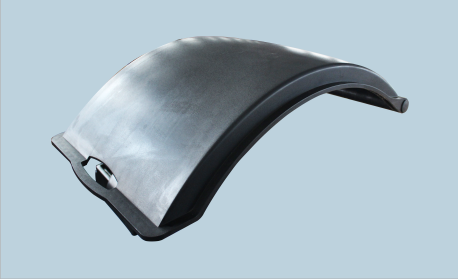

◆ Wheel guard made from injection molding, strong and tough




·

Technical Specification

　Motor power 　0.25kw/0.32kw
　Voltage 　240V/220V/110V ±10%/1PH 50/60HZ
　Rim width 　40-510mm /1.5"~20”
　Rim diameter 　254-615mm/10”~24”
　Max. wheel diameter 　37”/940mm
　Max. wheel weight 　60kg
  Details

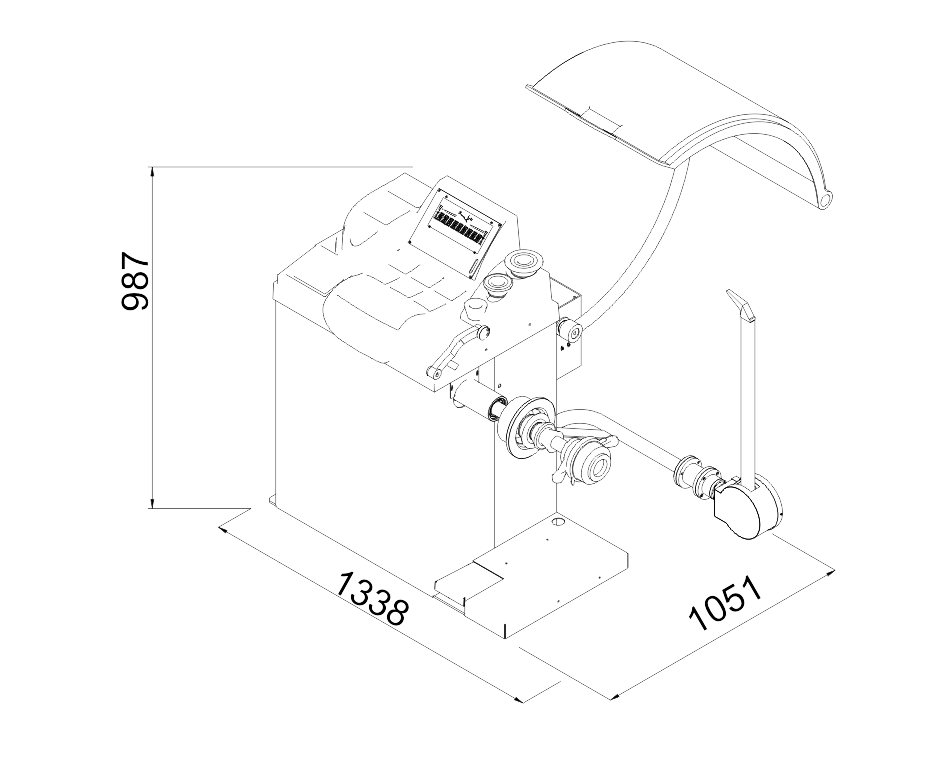

  Packing size and line drawings
