GHT750 AUTOMATIC TOUCHLESS TYRE CHANGER

◆Tilting column and pneumatic locking mount & demount arm;

◆Hexagonal shaft oriented tube extends to 270mm can prevent effectively deformation of hexagonal;shaft:

◆Foot valve fine structure can be demounting as a whole, operation stably and reliably, and easy maintenance;

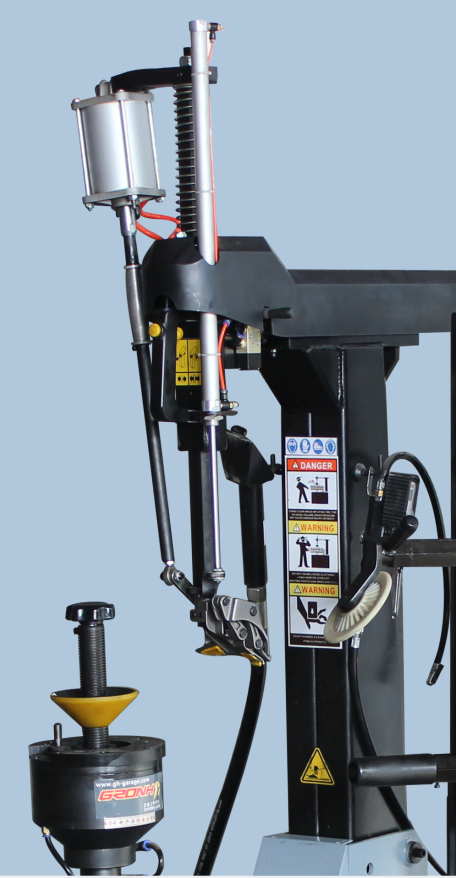

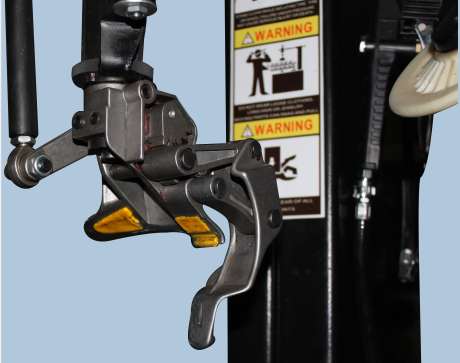

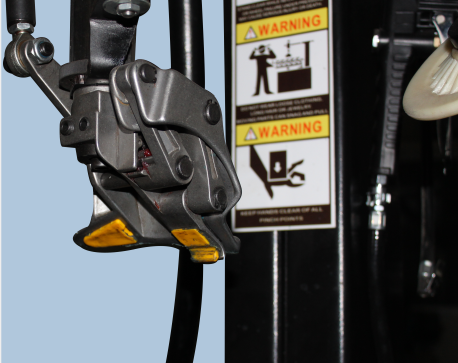

◆Automatic mount & demount head,operration easy; mainshaft pneumatic  locking fast and reliable:

◆Touchless structure, can mounting & demounting tyres more convenient;

◆With external air tank for quick inflation , controlled by a unique foot valve and hand-held for pneumatic device;(optional)

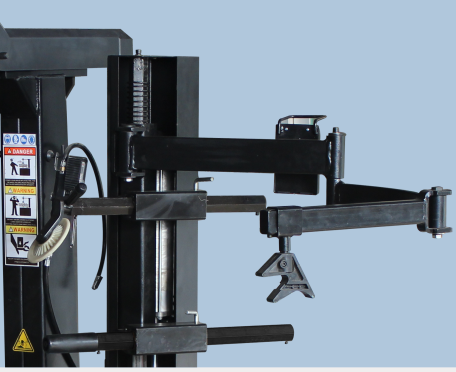

◆With pneumatic helper arm for handing wide, low-profile and stiff  tyres.





·

Technical Specification

 Motor power    1.1kw/0.75kw/0.55kw
 Power supply  110V/220V/240V/380V/415V
 Max. wheel diameter  41"/1043mm
 Max. wheel width    14"/360mm
 Inside clamping  12-24"
 Air requirement      8-10bar
 Rotation speed  6rpm
 Bead breaker force  2500Kg
 Noise level  <70dB
 Weight     419Kg
 Packing size  860*1330*1980mm
 8 units can be loaded into one 20”container
