Description of product images and characteristics
  GHB93C FULL AUTOMATIC WHEEL BALANCER

◆Automatic measurement of distance and wheel diameter;

◆Self calibration;

◆Unbalance optimization function;

◆Optional adaptor for motorcycle wheel balance;

◆Measurements in inches or millimeters, readout in gram or oz;

◆CE approved.




·

Technical Specification

　Motor power 　0.25kw/0.35kw
　Power supply 　240V/220V/110V 50/60Hz 1Ph
　Balancing speed 　200rpm
　Balancing accuracy 　±1g
　Rim width 　40~510mm/1.5”~20”
　Rim diameter 　254~615mm/10”~24”
　Max. wheel diameter 　940mm/37”
　Max. wheel weight 　65kg
　Noise level 　＜70dB
　Weight 　178kg
　Packing size 　1000*900*1150mm
  Details

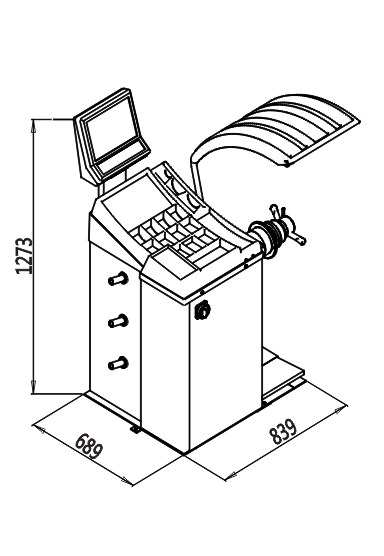

  Packing size and line drawings

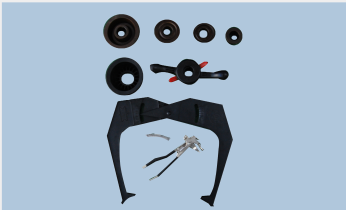

  Optional Parts
