Description of product images and characteristics
  GHB80 FULL AUTOMATIC 3D WHEEL BALANCER

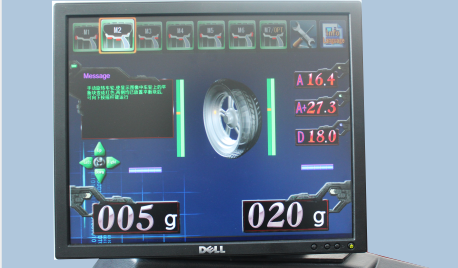

◆The 17‘‘ colorized LCD display, friendly interface,

 simple operation;

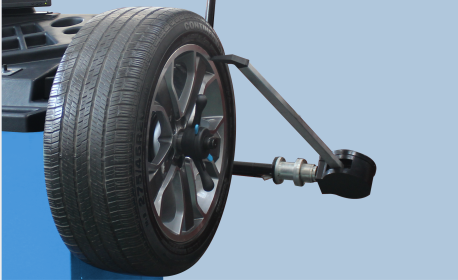

◆Paste the weights location by the laser positioning,

 more accurate;

◆A variety of balance mode, for special rims;

◆SPLIT function;

◆OPT optimization function;

◆Intelligent automatic calibration function;

◆Fault diagnostic function, and prompt the display diagnosis;

◆Can be measured IVECO rims;

◆Automatic measuring rims width size.





·

Technical Specification

　Max. wheel weight 　143LBS(65 kg)
　Rim diameter 　10''-25''
　Rim width 　1''-17''
　Max. wheel diameter 　43''(1100mm)
　Max. wheel width 　21''(530mm)
　Balancing speed 　≤140 rpm
　Cycle time 　15s
　Balancing precision 　0.05 oz/1g
　Power supply 　230V/110V, 1Ph, 50/60Hz
　Motor power 　0.3kw
　Packing size 　1520*1020*1450mm
  Details

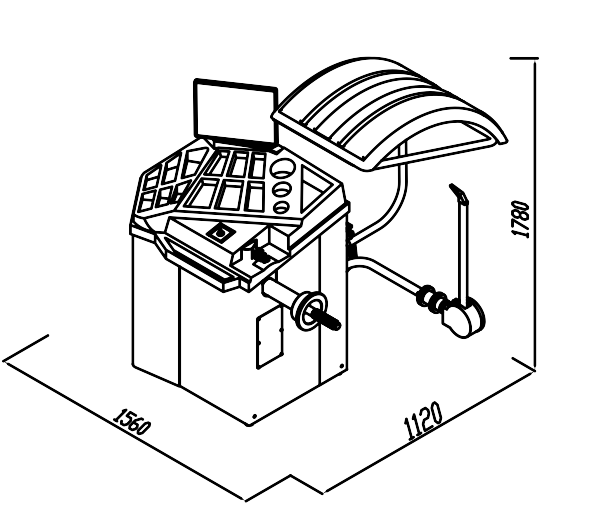

  Packing size and line drawings
