  GHB50 TRUCK WHEEL BALANCER

◆Both truck and car switchover;

◆Pneumatic braking;

◆Pneumatic lift for large wheel loading;

◆Self calibration;

◆Unbalance optimization function;

◆Measurements in inches or millimeters, readout in gram or oz;

◆CE approved.





·

Technical Specification

　Motor power 　0.55kw/0.8kw
　Power supply 　415V/380V/220V 50/60Hz 3Ph
　Balancing speed 　210rpm
　Balancing accuracy 　Car ±1g  Truck±25g
　Rim width 　76~510mm/3”~20”
　Rim diameter 　305~615mm/12”~24”
　Max. wheel diameter 　50”/1270mm
　Max. wheel weight 　200kg
　Noise level 　＜70dB
　Weight 　200kg
　Packing size 　1250*1000*1250mm
　9 units can be loaded into one 20”container
  Details

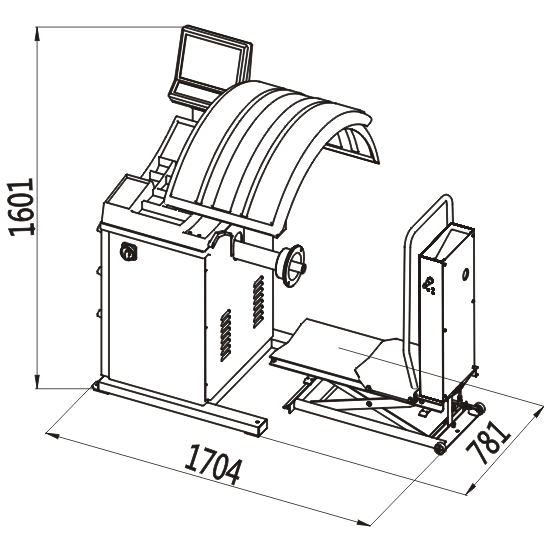

  Packing size and line drawings
