GH7000P TWO POST PARKING LIFT

◆row pooling column design ,save the space;

◆split joint platform ,convenient for transportation and installation ;

◆adopt high grade advanced cylinder,safe and reliable;

◆Adopt double chain ,ensure the lever of the platform;

◆Equipped with top and bottom limit switch,optoelectronic switch,ensure the safety of the vehicle and products;

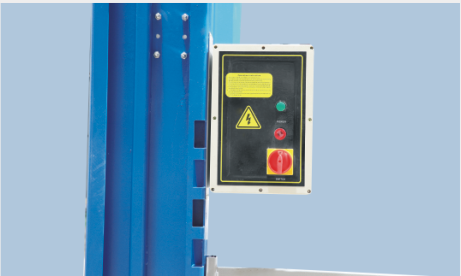

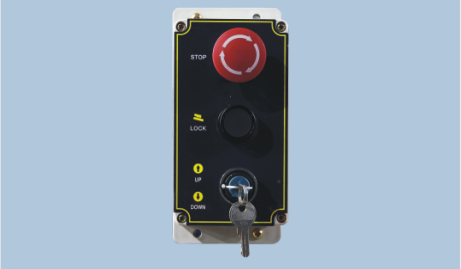

◆24V operating cabinet,and key controlled lifting and lowering system,ensure the saftey of human and vehicle;

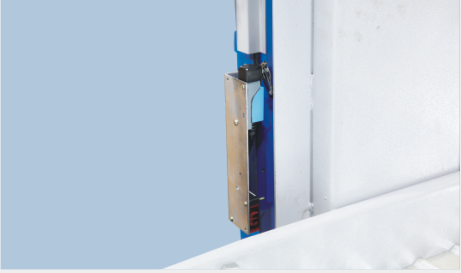

◆solenoid mechanical tooth locking system ,no compressor air required;

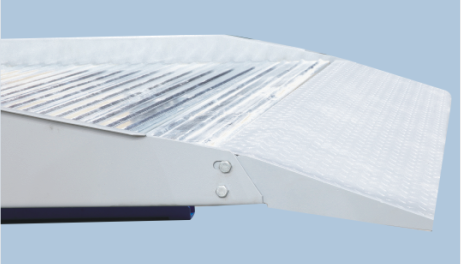

◆Low elevation slope adjustable elevation,super lower chassis vehicle can easy get through.




·

Technical Specification

 Lifting capacity  2700kg
 Max.parking height under platform  2050mm
 Thickness of the platform  115mm
 Lifting time  70s
 Descent time  60s
 Platform length  4165mm
 Platform width  2000/2100/2200mm
 Motor power  2.2kW
  Details

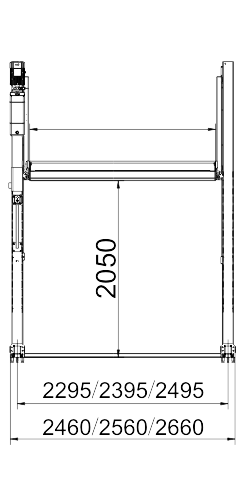

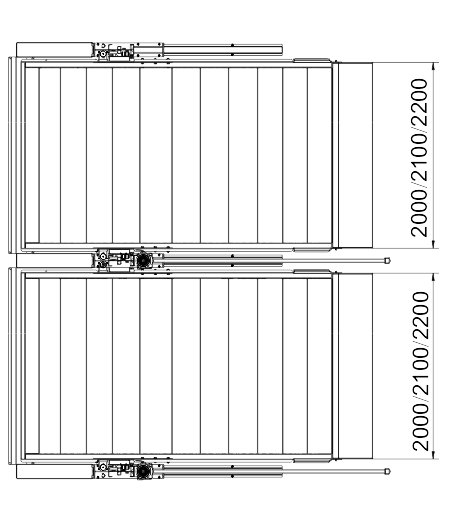

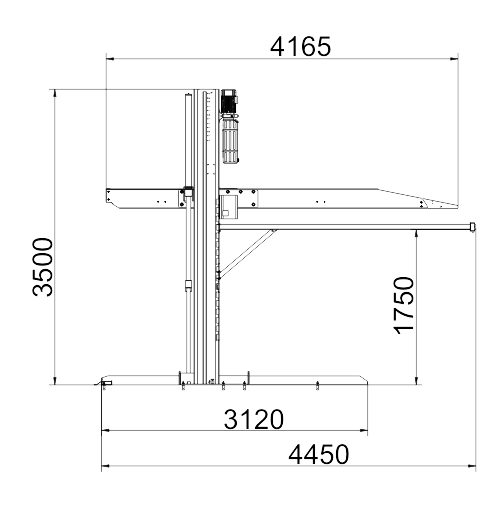

  Packing size and line drawings
