Description of product images and characteristics
  GHL435/440/450/455 FOUR POST LIFT

◆ LCD screen, friendly interface, full display

◆ of alphabet letters

◆ Fine position angled by 64-track optical encoder

◆ Weight calibration from double sides, easy to operate

◆ Pedal brake, efficient to add weight

◆ Wheel guard supported by air spring, locking position at any angle

◆ Wheel guard made from injection molding, strong and tough




·

Technical Specification

　Lifting capacity 　3500/4200/5000kg/5500kg

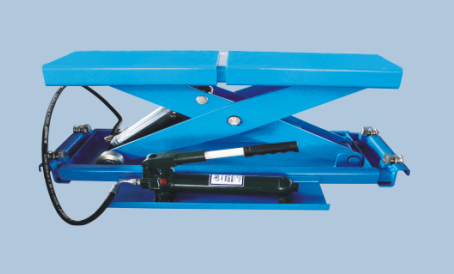

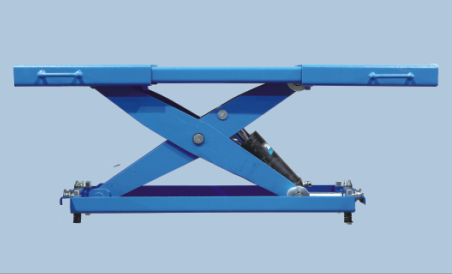

　Jack capacity 　2500kg
　Lifting height 　1800mm
　Lifting height 　220/220/260mm/260mm
　Overall height 　2120mm
　Runway width 　520/520/500mm/500mm
　Runway length 　4250/4800/4800mm/5500mm
　Lifting time 　60s
　Rated oil pressure 　18Mpa
　Motor power 　2.2/2.2/3.0/3.0kw
　Power supply 　220V, 240V, 380V, 415V
　Weight 　1384/1604/1824/2024kg
　Packing size 　4570/5100/5100/5700*560*730
　units can be loaded into one 20 　12台
  Details

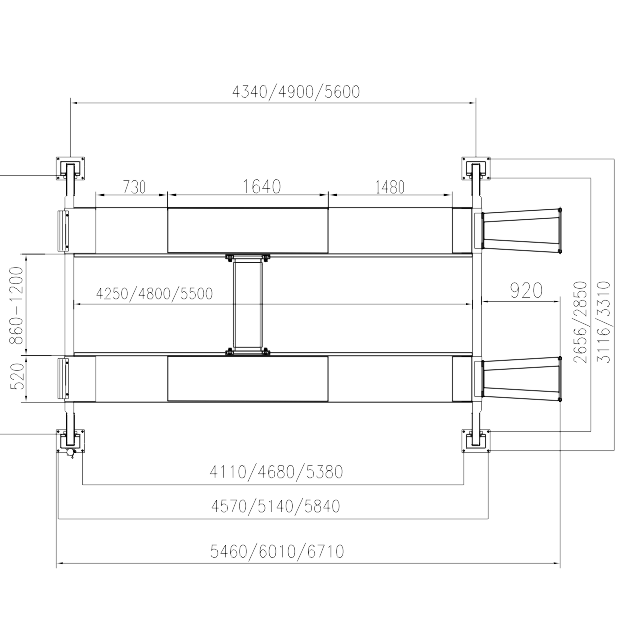

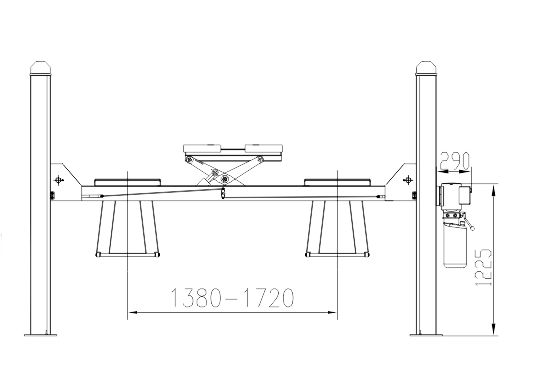

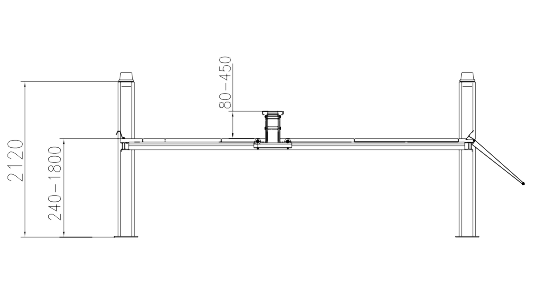

  Packing size and line drawings

  Optional Parts
