GHSL110 FULL RISE SCISSOR LIFT, GROUND MOUNTED

◆Ground mounting

◆4-cylinders structure, 110mm minimum height.

◆Aluminum motor prevents overheat.

◆24V safety control system .

◆24V height limit switch included optional.

◆Equipment down to the ground 500 mm, the control box signal device alarm, ensured the safety of operator and surrounding personnel optional.

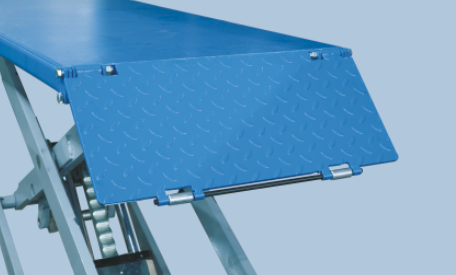

◆Platforms extension for lifting long vehicles.

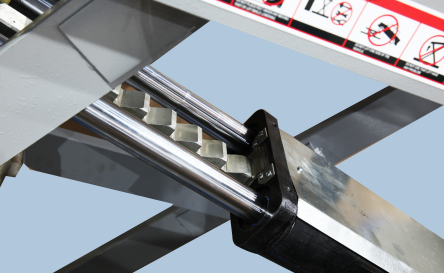

◆Pneumatic control lock device.

◆115% dynamic and 150% static loading test passed.

◆CE approved.

·	Technical Specification

Lifting capacity	3000kg
lifting height	1830mm
Min. height	110mm
Lifting time	50S
Overall length for platform	1475~1975mm
Overall width for platform	660mm
Motor power	2.2kw
Power supply	220V/380V/415V
Oil pressure	20MPa
Air supply pressure	6-8bar
Weight	1045kg
Packing size	1620×680×340mm/560×450×1150mm
36 units can be loaded into one 20”container

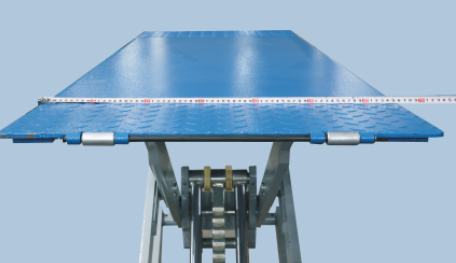

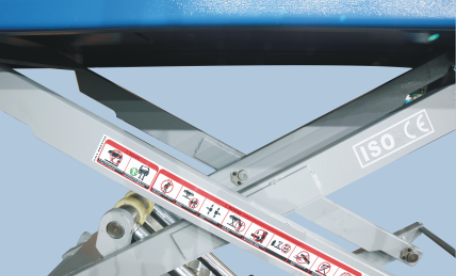

Details

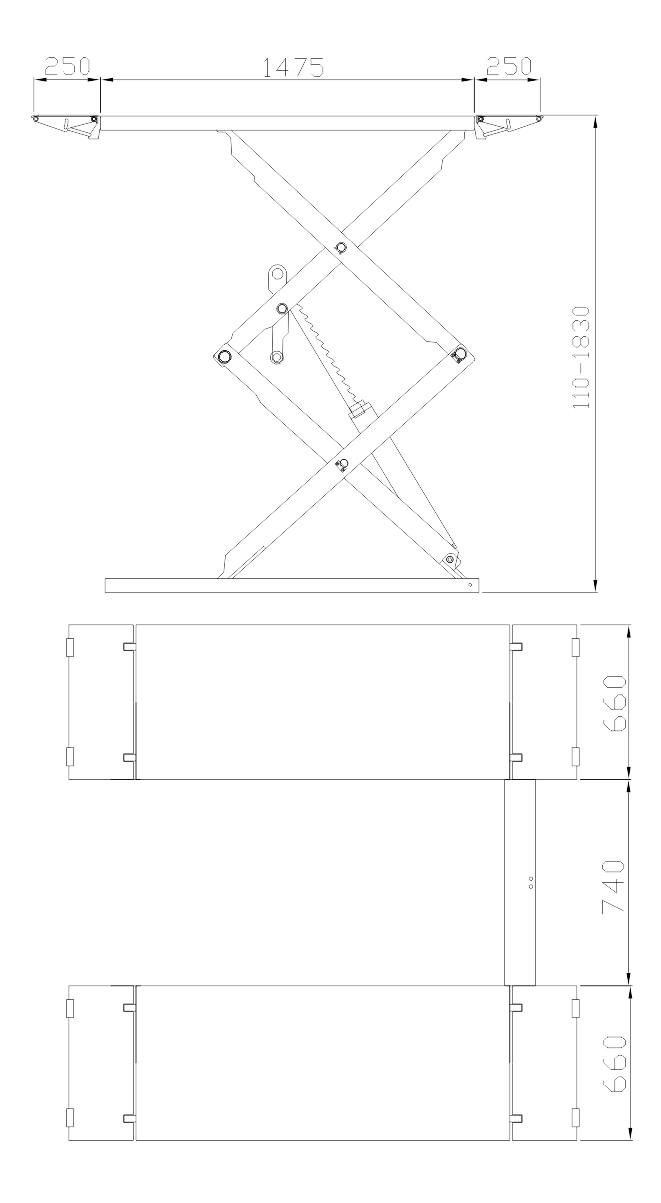

Packing size and line drawings
