GHSL330 FULL RISE SCISSOR LIFT, IN-GROUND MOUNTED

◆In-ground mounting；

◆2-cylinders structure,330mm under trench installation；

◆Aluminum motor prevents overheat；

◆24V safety control system；

◆24V height limit switch included；

◆Safety signal when lowering from 500mm above ground；

◆Platforms can extension for different long vehicles；

◆115%dynamic and 150% static loading test passed；

◆CE approved。

·	Technical Specification

Lifting capacity	3000kg
lifting height	2030mm
Min. height	330mm
Lifting time	55~60S
Overall length for platform	1500~1800mm
Overall width for platform	550mm
Width between platform	910mm
Motor power	2.2KW
Power supply	220V/380V/415V
Oil pressure	20MPa
Air supply pressure	6-8bar
Weight	868kg
Overall size	1600×600×780mm/560×450×1150mm
18 units can be loaded into one 20”container

Details

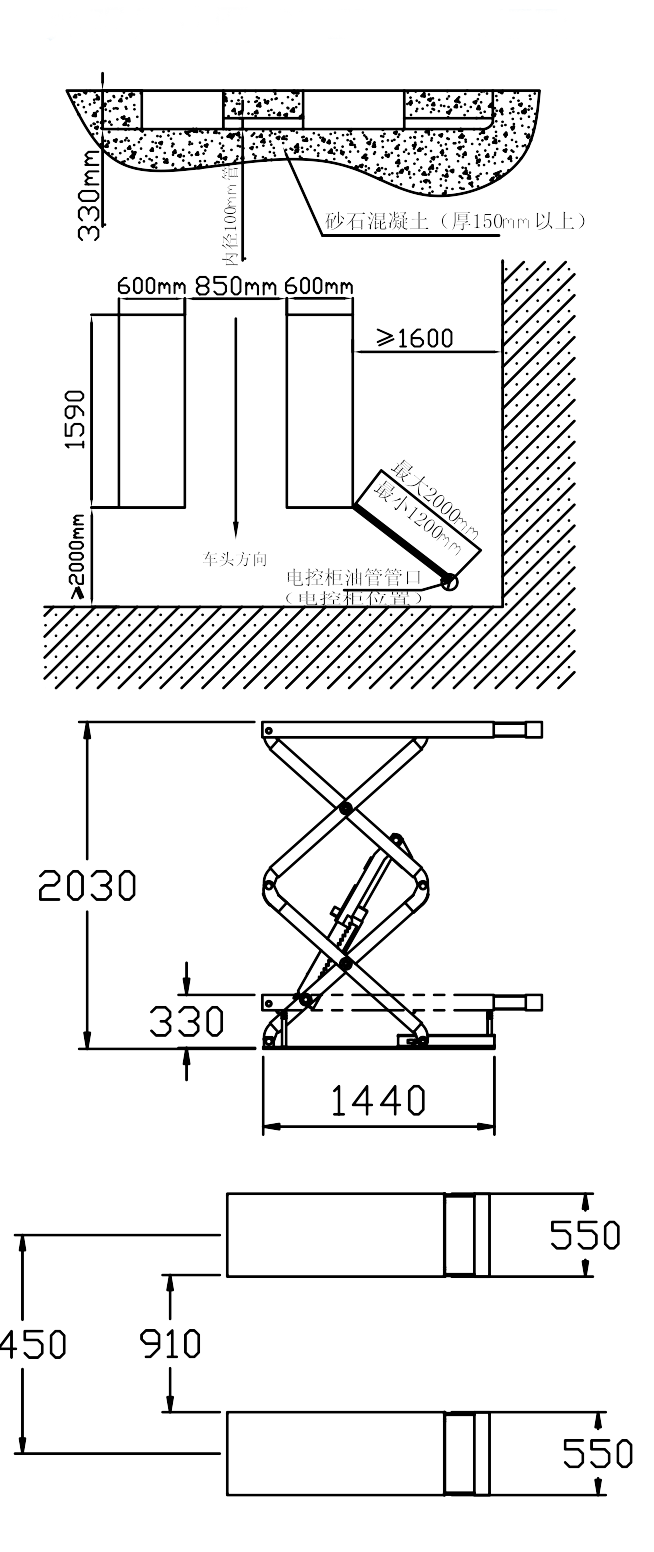

Packing size and line drawings
