GHT2422AC+HL360 TYRE FULL AUTOMATIC TYRE CHANGER

◆Tilting column and pneumatic locking mount & demount arm ;

◆Six-axis oriented tube extends to 270mm can prevent effectively deformation of six-axis;

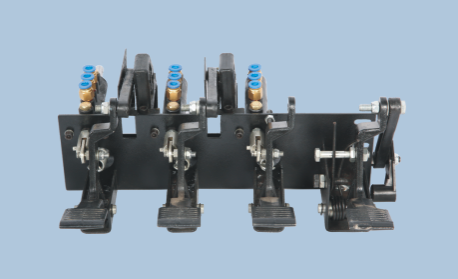

◆Foot valve fine structure can be demounting as a whole, operation stably and reliably, and easy maintenance ;

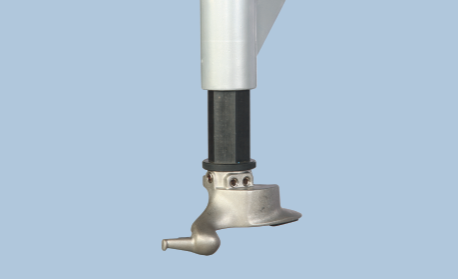

◆Mounting head is made of Alloy steel, Lifetime Warranty;

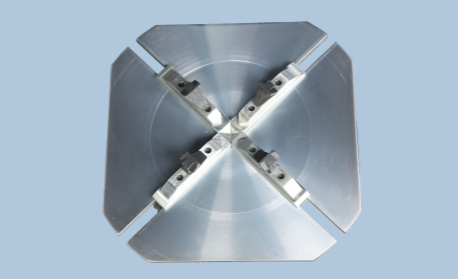

◆Grip jaw is made of Alloy steel , Lifetime Warranty;

◆Adjustable Grip Jaw(option),±2”can be adjusted on the basic clamping size;

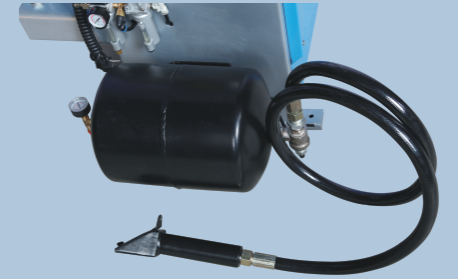

◆Equipped with the external air tank jet-blast device, controlled by a unique foot valve and hand-held pneumatic device;

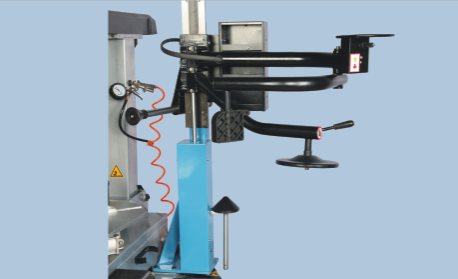

◆With power assist arm for handing wide, low-profile and stiff tyres.




·

Technical Specification

 Motor power    1.1kw/0.75kw/0.55kw
 Power supply  110V/220V/240V/380V/415V
 Max. wheel diameter  44"/1120mm
 Max. wheel width    14"/360mm
 Outside clamping    10"-21"
 Inside clamping         12"-24"
 Air requirement      8-10bar
 Rotation speed        6rpm
 Bead breaker force  2500Kg
 Noise level  <70dB
 Weight     384Kg
 Package size    1100*950*950mm 1330*1080*300mm
 24 units can be loaded into one 20”container
  Details

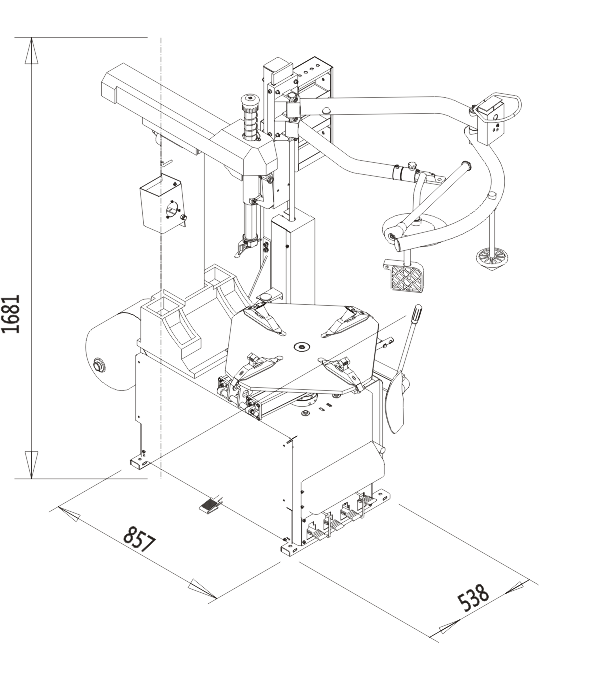

  Packing size and line drawings

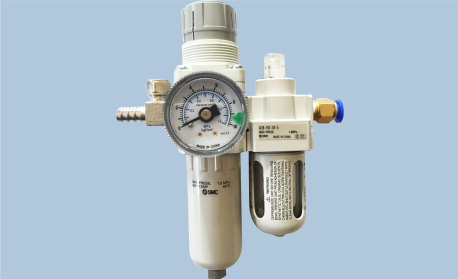

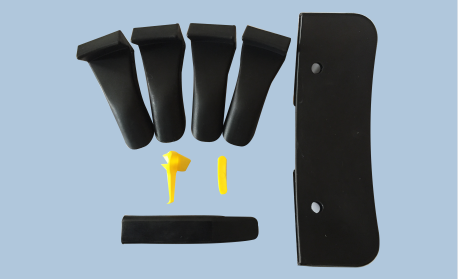

  Optional Parts
