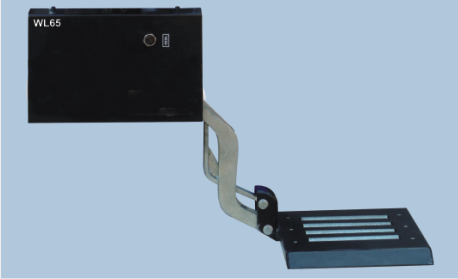

GHT2824AC+AR410+AL410+WL65 AUTOMATIC RACING TYRE CHANGER

◆Foot valve fine structure can be removed as a whole, operation stably and reliably,    and easy maintenance;

◆Mounting head is made of Alloy steel, Lifetime Warranty;

◆Grip jaw is made of Alloy steel , Lifetime Warranty;

◆S41 hexagonal oriented tube extended to 270mm, effectively prevent the deformation of the hexagonal shaft;

◆Equipped with tyre lifter ,easy for loading the tyre;

◆Equipped with the built-in air tank jet-blast device, controlled by a unique foot valve and hand-held pneumatic device;

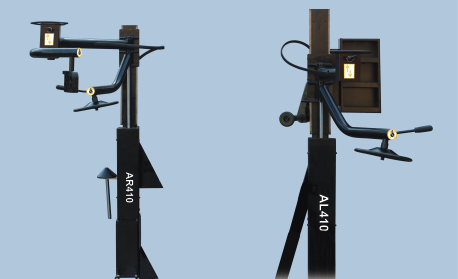

◆With double helper  arm for handing wide, low-profile and stiff tryes.

◆Adjustable Grip Jaw(option),±2”can be adjusted on the basic clamping size.




·

Technical Specification

 Motor power    1.1kw/0.75kw/0.55kw
 Power supply  110V/220V/240V/380V/415V
 Max. wheel diameter  47"/1200mm
 Max. wheel width    16"/410mm
 Outside clamping    13"-24"
 Inside clamping         15"-28"
 Air supply  8-10bar
 Rotation speed        6rpm
 Bead breaker force  2500Kg
 Noise level  <70dB
 Weight     562Kg
 Package size    1400*1120*1800
 8 units can be loaded into one 20”container
  Details
  Packing size and line drawings

  Optional Parts
